Sputter

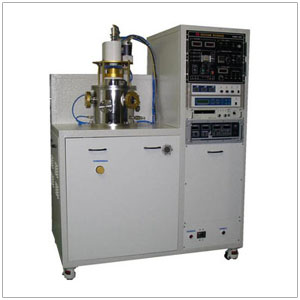

- VSMS-25A

   Turbo Pumping SystemÀ» ÀåÂøÇÏ¿© è¹ö¸¦ ½±°Ô °íÁø°ø

   À¸·Î ¸¸µé¼ö ÀÖÀ¸¸ç Magnetron sputtering Gun 3°³¸¦ ÀåÂø

   ÇÏ¿© multi layer¸¦ ½±°Ô ÁõÂø°¡´ÉÇϵµ·Ï ¼³°èµÇ¾ú½À´Ï´Ù.

   ¶ÇÇÑ reactive gas¸¦ ÀÌ¿ëÇÑ reactive sputtering¸¦ ÇϽǼö

   ÀÖÀ¸¸ç GasÀÇ Á¤¹ÐÁ¶Á¤ °ú RF POWER ¹× DC POWER°¡

   »ç¿ë °¡´ÉÇÏ¿© ¿©·¯°¡Áö ¹Ú¸· ¿¬±¸¿¡ °¡Àå ÀûÇÕÇÑ È¯°æÀ»

   Á¦°øÇÕ´Ï´Ù.





SPECIFICATIONS (VSMS-25A)

SPUTTER TYPE

Magnetron up type

body by all stainless steel

water jacket type

substrate heater(mould heater)

MAX 600'C (Option 950'C)

rotation motor drive

0~20 RPM

magnetron sputter gun

dia 2"

sliding length

60mm

turbo pump

400 l/sec

direct drive rotary pump

600 L/ MIN

mass flow controller

Ar 100sccm(Option O2, N2)

RF power supply with auto matching network

600w(digital display)

DC power supply

1000W(digital display)

helium leak detection

alcatel detector unit

warranty

12month
